A small software development project has eight major activities. The times are estimated and provided in the table below:
|
Activity |
Optimistic Time |
Most Likely Time |
Pessimistic Time |
Immediate Predecessor(s) |
|
A |
3 |
4 |
5 |
-- |
|
B |
5 |
7 |
9 |
-- |
|
C |
2 |
3 |
10 |
A |
|
D |
2 |
5 |
8 |
B |
|
E |
1 |
7 |
7 |
B |
|
F |
3 |
5 |
7 |
C, D |
|
G |
7 |
8 |
9 |
D, E |
|
H |
2 |
6 |
10 |
F |
Answer the following questions based on above table 1-2 (show your work to get full credit):

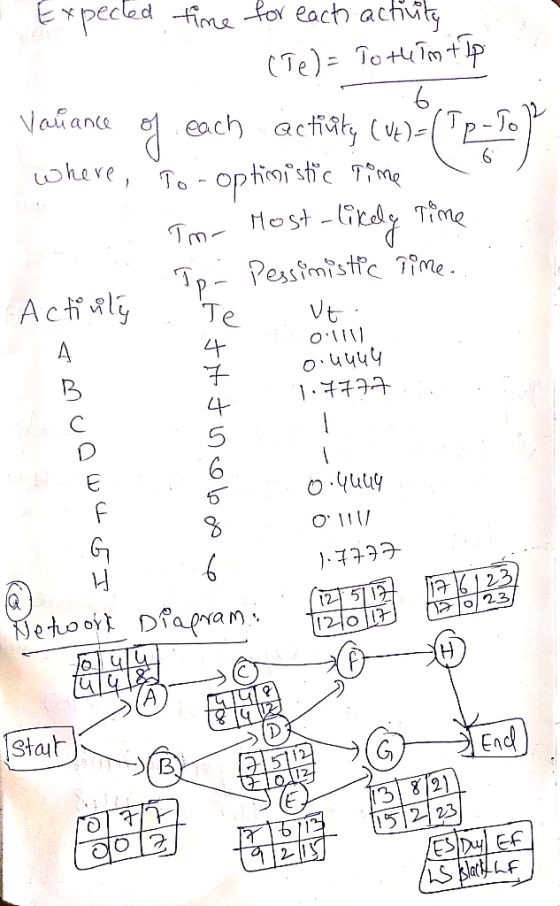

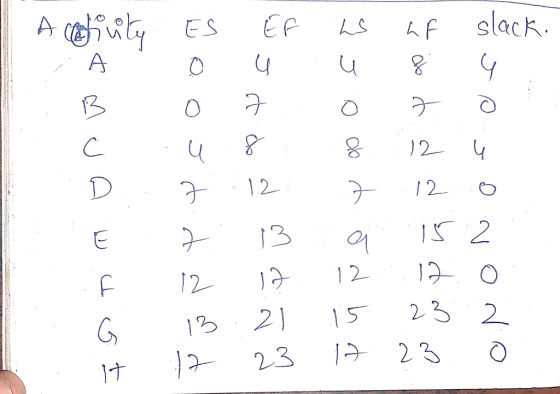

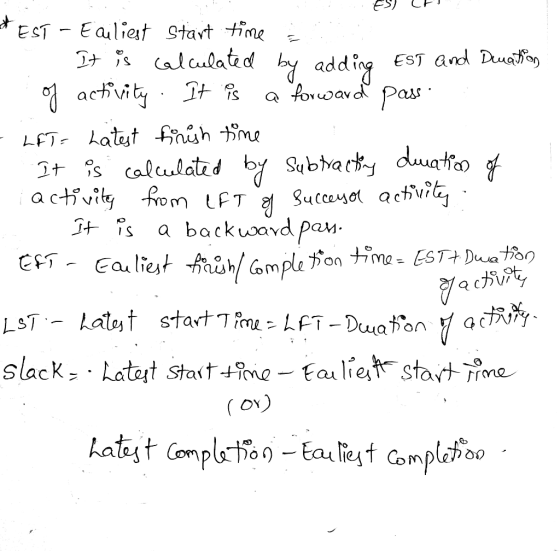

- Draw the network for all activities for software development. Also, Determine ES, EF, LS, LF, and slack for each activity (complete the network for all activities).

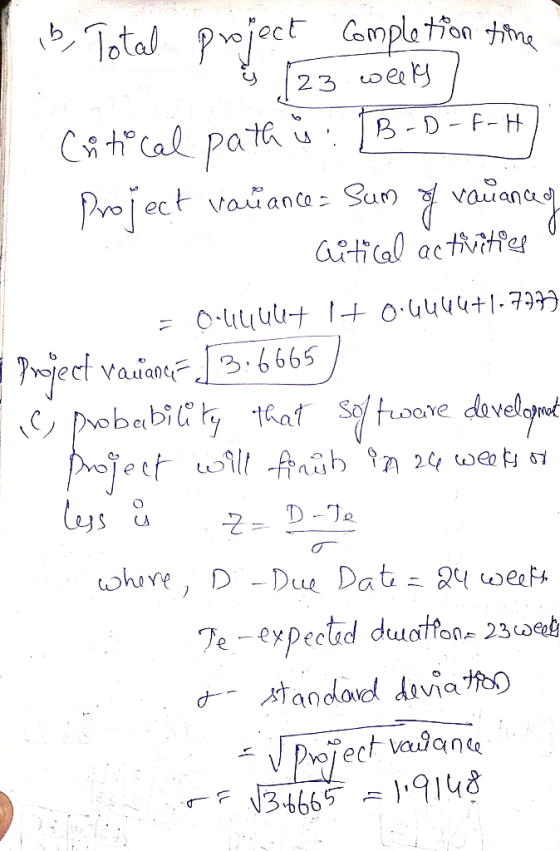

- Determine the total project completion time and the critical path for software development. What is the project variance?

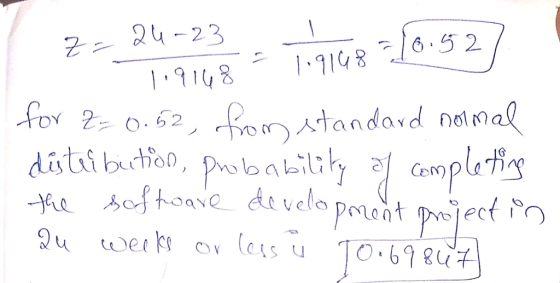

- What is the probability that software development project will finish in 24 weeks or less?
Homework Answers
