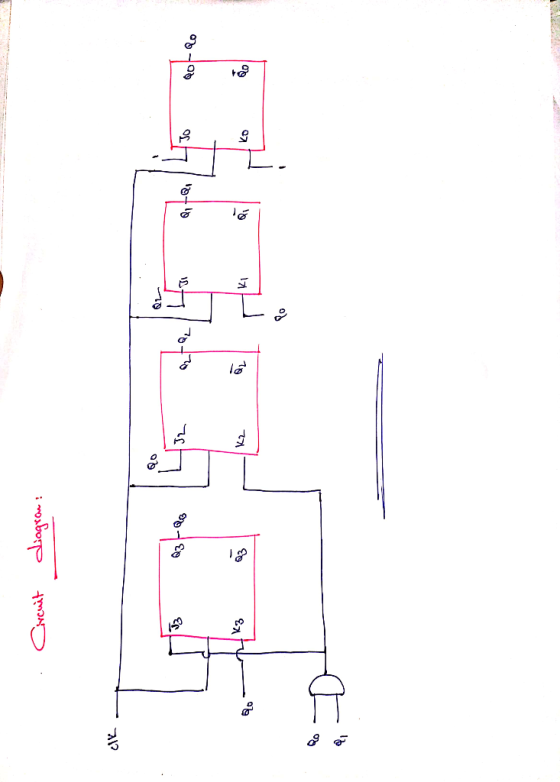

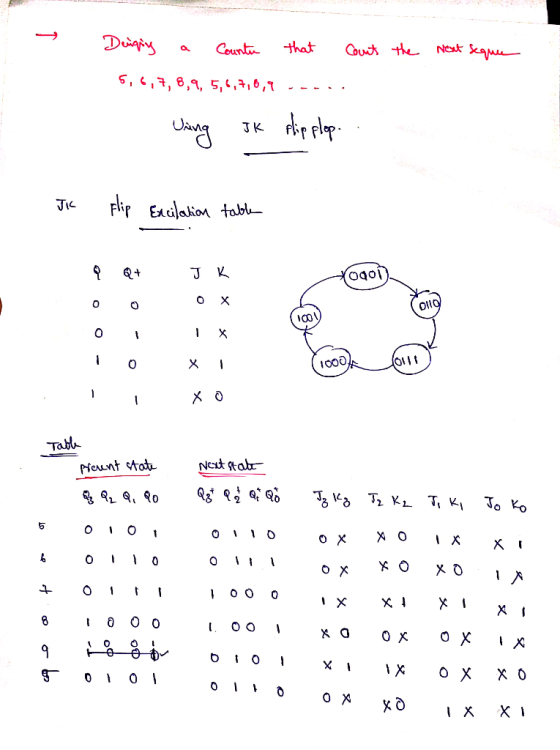

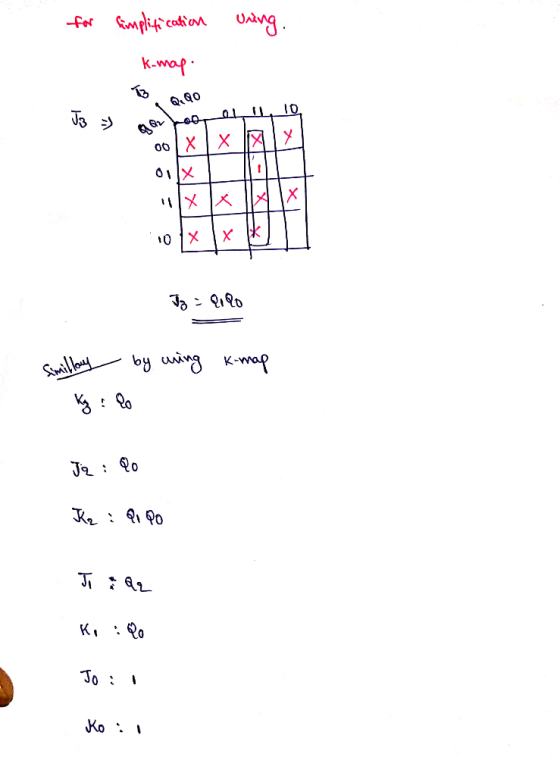

Desing a counter that counts the next sequence: 5,6,7,8,9,5,6,7,8,9..........(Everytime it reaches 9 it returns to 5 and start all over again in an infinite loop)
USE FLIP FLOPS JK
SHOW THE SCHEMATIC
Desing a counter that counts the next sequence: 5,6,7,8,9,5,6,7,8,9..........(Everytime it reaches 9 it returns to 5...
9) Using JK flip flops and in the space below, design a synchronous counter that counts up from 0 to 5 and recycles to 0. (Positive edge triggered, PRE & CLR active low) Show all connections except the power and ground inputs to the flip flops.
Design a counter that counts in the following sequence: 010, 011, 100, 101, and repeat. Use JK flip-flops in your implementation.
Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down. An enable input E determines whether the counter is on or off. If E = 0, the counter is disabled and remains in the present count even though clock pulses are applied to the flip-flops. If E= 1, the counter in enabled and a second input, x, determines the count direction. If x= 1, the circuit counts up with the sequence...
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
5) Using minimum possible of JK flip-flops design a counter that counts: 0, 3, 6, 1, 4, 7, 2, 0, ... (repeat). (10 Marks)
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.
Please show what the circuit of a 0-5 counter using either jk or d flip flops that will count from 0-5 and loop back would look like.. Using negative edge triggered flip flops such as an SN74LS74AN.
Please show what the circuit of a 0-5 counter using either jk or d flip flops that will count from 0-5 and loop back would look like.. Using negative edge triggered flip flops such as an SN74LS74AN. No truth table or kmaps neccesary, just the circuit diagram
all please
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0, and counts up 0,1,2...7,0... when w 1 The output z-1, when the state of the counter is a prime number. Otherwise, z-0 1. List Inputs, Outputs and the count sequence. (5pts) 2. Draw the finite State machine for the counter. (10pts) 3. Draw the state transition table <extra columns for the flip flops values> (20pts) armed resource/content/1/case%20study.template.docx 4. Design...
Design a 3-bit synchronous counter that counts the sequence 7, 4, 2, 1, 6, 5, 7, ect. Use "don't-cares" for the "next states" of the unwanted states. Use a D flip flopfor the most significant bit, a T flip flop for the middle bit, and a JK flip flop for the least significant bit. Use SOP.
