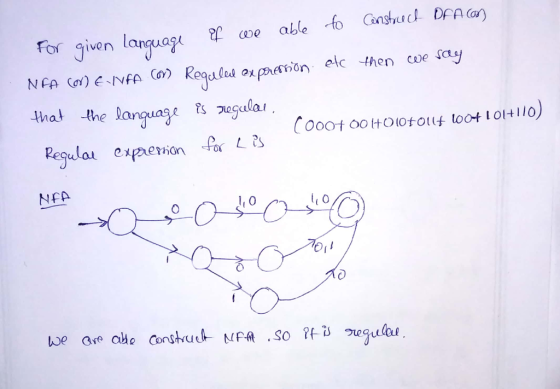

Given a language ? = {000, 001, 010, 011, 100, 101, 110}. Prove that this language is regular.
Given a language ? = {000, 001, 010, 011, 100, 101, 110}. Prove that this language...
Design a 8x4 ROM with the following contents. Address 000 001 010 011 100 101 110 111 ROM Data 0001 0001 0000 0000 0111 0110 1111 0101
XYZ f(x,y,z) 111 110 101 100 011 010 001 000 Based on this truth table. What is the sum of products form? How to use a K-map to figure out the minimal form for this boolean function. What is the circuit digram for the minimized form?
Design a synchronous counter that has the following sequence: 000, 010, 101, 110 and repeat. The undesired states 001, 011, 100 and 111 must always go to 000 on the next clock pulse.
The first eight elements of binary and Gray code are given below: Binary | Gray 000 | 000 001 | 001 010 | 011 011 | 010 100 | 110 101 | 111 110 | 101 111 | 100 Design a circuit that converts from binary to Gray code.

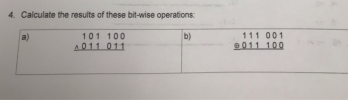

4. Calculate the results of these bit-wise operations: 101 100 ^011 011 111 001 e011 100 a) b)
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
-Design a synchronous counter using D FFs that has the following sequence: 000, 010, CBA 101, 110, and repeat. The undesired (unused) states must always go to 000 on the next clock pulse. СВА 001 0,1,2 3,4,5 6,7,8,9 100 111
Design a Binary Counter with the repeating sequence of 100 - 110 - 111 - 011 - 001 - 000 using T Flip-Flops. Find the input expressions of the T Flip-Flops by K-Map.
Design a counter that counts in the following sequence: 010, 011, 100, 101, and repeat. Use JK flip-flops in your implementation.
Design a Verilog model that describes the following state diagram. (Test bench and simulation are not required) 1. 01 10 1- 10 10 01 01 10 or 01) 01 Design a Verilog model that describes a synchronous 3 bit counter. The counter has a counting mode control signal (M), when M-o, the counter counts up in the binary sequence, when M- 1, the counter advances through the Gray code sequence. (Test bench and simulation are required to verify the counter...
