Mechanical toy animals often use a walking mechanism as shown idealized in the figure. If...

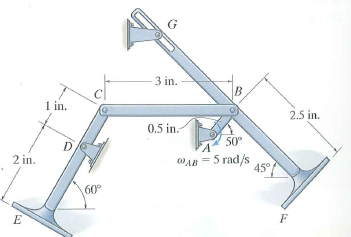

Mechanical toy animals often use a walking mechanism as shown idealized in the figure. If the driving crank AB is propelled by a spring motor such that ωAB = 5 rad/s, determine the velocity of the rear foot E at the instant shown. Although not part of this problem, the upper end of the foreleg has a slotted guide which is constrained by the fixed pin at G.
