Due to the screw at E, the actuator provides linear motion to the arm at F when the motor...

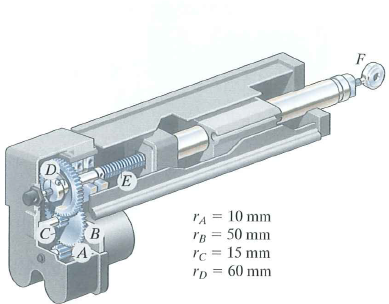

Due to the screw at E, the actuator provides linear motion to the arm at F when the motor turns the gear at A. If the gears have the radii listed in the figure, and the screw at E has a pitch p = 2 mm, determine the speed at F when the motor turns A at ωA = 20 rad/s.
