1. Draw the circuit to calculate the sum of two bits using basic gates 2. Draw...
1. Draw the circuit to calculate the sum of two bits using basic gates
2. Draw the circuit to calculate the carry out for the sum of two bits using basic gates.
3. Modify and draw both circuits to incorporate a carry in using basic gates.

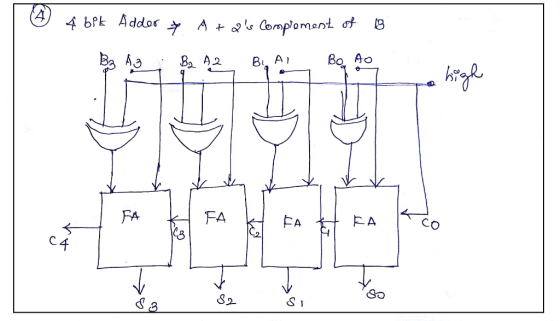

4. Upgrade the previous circuit by showing the required gates and connections to allow your 4 bit adder to add the two’s complement of the 2nd input.
Homework Answers
Add Answer to:

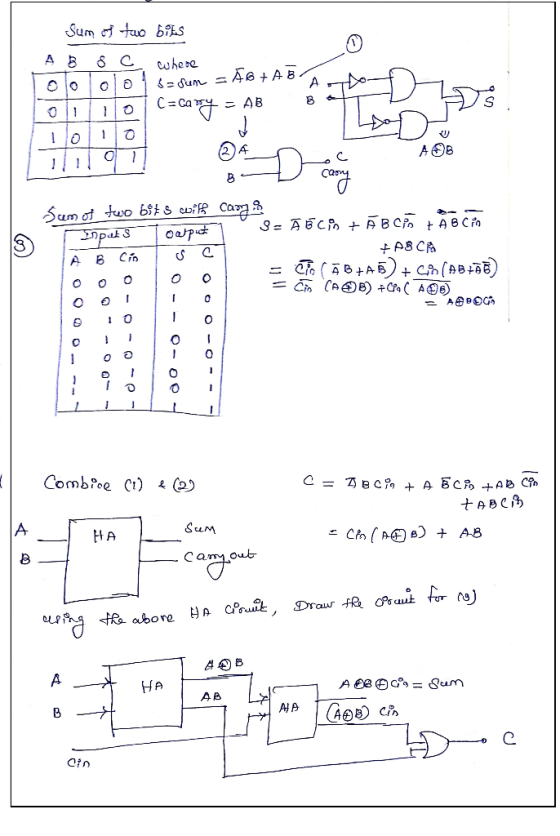

1. Draw the circuit to calculate the sum of two
bits using basic gates
2. Draw...
1. Use both circuits and incorporate a carry in using basic gates to get a 1...
1. Use both circuits and incorporate a carry in using
basic gates to get a 1 bit full adder.
2. Using the prior circuit, modify it to make a 3 bit
adder that can add the two’s complement of the 2nd input (i.e. be
able to subtract).
I have drawn two gates, one is used to (i)"calculate the sum of
two bits using basic gates." while the other is used to (ii)"carry
out for the sum of two bits using...
First you must create a logic circuit using only basic gates such as AND, OR, NOR,...
First you must create a logic circuit using only basic gates such as AND, OR, NOR, NAND, NOT, etc. to implement an ADDER capable of adding two 4 bit binary numbers. Second you must create a logic circuit using only basic gates such as AND, OR, NOR, NAND, NOT, etc. to implement a Subtractor that is capable of subtracting the second number from the first, by converting the second number into its 2's complement form and then adding the resulting...
A full-adder is a combinational circuit (memory-less) that forms the arithmetic sum of two input bits...
A full-adder is a combinational circuit (memory-less) that forms the arithmetic sum of two input bits (say a and b) and a carry in (Cin, so three input bits total). The full-adder provides two outputs in the form of the (S)um and the carry out (Cout). The input bits a and b represent the terms to be added, but the full-adder needs to also consider the carry in bit, too. Construct a truth table for the Full-Adder Construct a K-Map...
6) For following multiplier circuit, calculate the process time if: Td (carry) 2ns, Td (sum) -2ns,...
6) For following multiplier circuit, calculate the process time if: Td (carry) 2ns, Td (sum) -2ns, Td (gate) ns, Td (each shit operation) = 10ns, only input logic two gates are available. a. Ripple carry adder used in ALU Carry Look Ahead used in ALU Multiplicand 32 bits 32-bit ALU Shift right Write Control Product test 64 bits
6) For following multiplier circuit, calculate the process time if: Td (carry) 2ns, Td (sum) -2ns, Td (gate) ns, Td (each shit...
Design a Combinational circuit that forms that form the 2-bit binary Sum S1S2 of two 2-bit...
Design a Combinational circuit that forms that form the 2-bit binary Sum S1S2 of two 2-bit numbers X1X0 and Y1Y0 and can produce a carry ouput C. Design the entire circuit with the help of three half adder circuits implementing each of the three outputs with XOR-AND and OR gates
a full-adder circuit is used to add 2 bits A and B and the carry (Cin)...
a full-adder circuit is used to add 2 bits A and B and the carry (Cin) that resulted from the addition of the previous 2 bits. It then produces a SUM S and a carry out (Cout) that would be added to the more significant bits. Generate a truth table that has inputs A, B and Cin and the 2 outputs S and Cout. Find the logical function from the truth table and simplify it, if possible. Implement the function...
Tim Question 1 Atte 20 pts 2H 24 Design a 1-bit Full Adder using NOR gates...
Tim Question 1 Atte 20 pts 2H 24 Design a 1-bit Full Adder using NOR gates only, you must include and show: Truth tables, detail logic gate circuit designs, and Boolean expressions Upload Choose a File 20 pts Question 2 Design a 4-bit Full Adder with inputs (Xo...X3, Yo...Y3) in which inputs X are connect to two 4-bit registers via four 2-to-1 Multiplexers and inputs Y are connected to two other 4-bit registers via four 2-to-1 Multiplexers. In this case...
Question: Part 1: In the second part of this lab, we will extend our adder to...
Question:
Part 1:
In the second part of this lab, we will extend our adder to also allow for subtraction of the second number from the first. To implement this, we must take the 2's compliment of the second number and add it to the first. This can be implemented using the circuit shown in Section 4.4.2 of the notes, which is shown again here in Figure 2. B3 A3 B2 A B, A, B, A, -SM 0: Add 1:...
number 4 and 5 please! PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
1. Use both circuits and incorporate a carry in using
basic gates to get a 1 bit full adder.
2. Using the prior circuit, modify it to make a 3 bit
adder that can add the two’s complement of the 2nd input (i.e. be
able to subtract).
I have drawn two gates, one is used to (i)"calculate the sum of
two bits using basic gates." while the other is used to (ii)"carry
out for the sum of two bits using...
6) For following multiplier circuit, calculate the process time if: Td (carry) 2ns, Td (sum) -2ns, Td (gate) ns, Td (each shit operation) = 10ns, only input logic two gates are available. a. Ripple carry adder used in ALU Carry Look Ahead used in ALU Multiplicand 32 bits 32-bit ALU Shift right Write Control Product test 64 bits
6) For following multiplier circuit, calculate the process time if: Td (carry) 2ns, Td (sum) -2ns, Td (gate) ns, Td (each shit...
Tim Question 1 Atte 20 pts 2H 24 Design a 1-bit Full Adder using NOR gates only, you must include and show: Truth tables, detail logic gate circuit designs, and Boolean expressions Upload Choose a File 20 pts Question 2 Design a 4-bit Full Adder with inputs (Xo...X3, Yo...Y3) in which inputs X are connect to two 4-bit registers via four 2-to-1 Multiplexers and inputs Y are connected to two other 4-bit registers via four 2-to-1 Multiplexers. In this case...
Question:
Part 1:
In the second part of this lab, we will extend our adder to also allow for subtraction of the second number from the first. To implement this, we must take the 2's compliment of the second number and add it to the first. This can be implemented using the circuit shown in Section 4.4.2 of the notes, which is shown again here in Figure 2. B3 A3 B2 A B, A, B, A, -SM 0: Add 1:...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
