Two solid steel shafts, each of 30-mm diameter, are connected by the gears shown. Knowing...

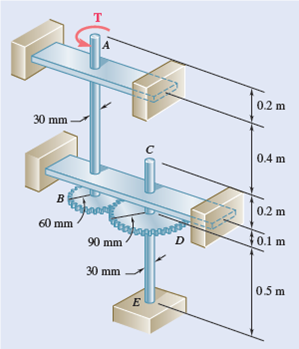

Two solid steel shafts, each of 30-mm diameter, are connected by the gears shown. Knowing that G = 77.2 GPa, determine the angle through which end A rotates when a torque of magnitude T = 200 N·m is applied at A.
Fig. P10.34
