Problem

Two solid steel shafts are fitted with flanges that are then connected by bolts as shown....

Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5° rotation of one flange with respect to the other before the flanges begin to rotate as a single unit. Knowing that G = 77.2 GPa, determine the maximum shearing stress in each shaft when a torque T of magnitude 500 N·m is applied to the flange indicated.

The torque T is applied to flange B.

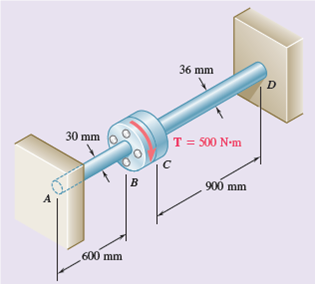

Fig. P10.58
