Problem

Two shafts, each of -in.-diameter, are connected by the gears shown. Knowing that G = 11....

Two shafts, each of -in.-diameter, are connected by the gears shown. Knowing that G = 11.2 ×10⁶ psi and that the shaft at F is fixed, determine the angle through which end A rotates when a 1.2 kip·in.-torque is applied at A.

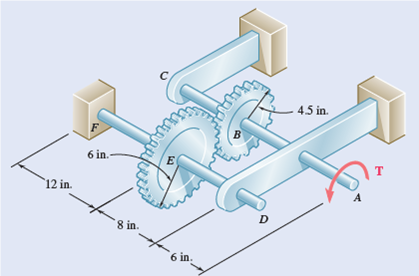

Fig. P10.35
