Problem

The design specifications for the gear-and-shaft system shown require that the same diamet...

The design specifications for the gear-and-shaft system shown require that the same diameter be used for both shafts and that the angle through which pulley A will rotate when subjected to a 2-kip·in. torque T_A while pulley D is held fixed will not exceed 7.5°. Determine the required diameter of the shafts if both shafts are made of a steel with G = 11.2 × 10⁶ psi and τ_all = 12 ksi.

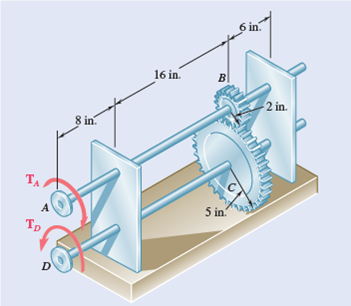

Fig. P10.47
